Factory Lead Time

14 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

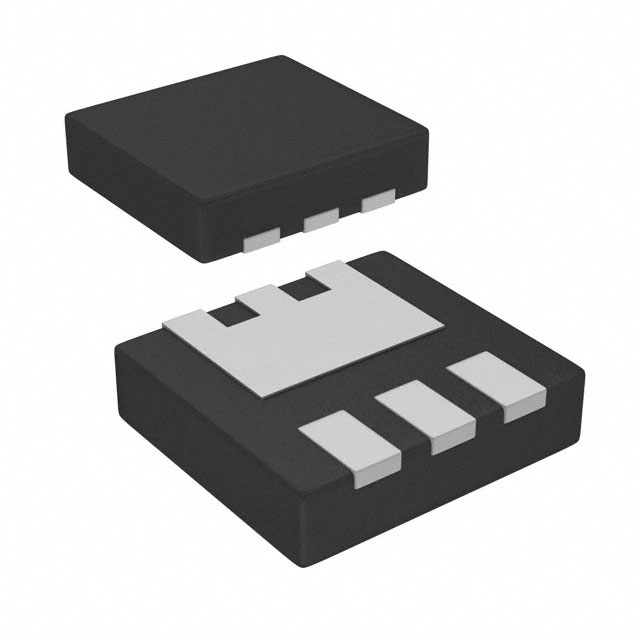

Package / Case

6-PowerUDFN

Number of Pins

6

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

9.2A Ta

Drive Voltage (Max Rds On, Min Rds On)

1.5V 4.5V

Number of Elements

1

Power Dissipation (Max)

1W Ta

Turn Off Delay Time

240.8 ns

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Published

2012

JESD-609 Code

e4

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

4

ECCN Code

EAR99

Terminal Finish

Nickel/Palladium/Gold (Ni/Pd/Au)

Additional Feature

HIGH RELIABILITY

Terminal Position

DUAL

Peak Reflow Temperature (Cel)

260

Time@Peak Reflow Temperature-Max (s)

40

Pin Count

6

JESD-30 Code

R-PDSO-N4

Number of Channels

1

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Case Connection

DRAIN

Turn On Delay Time

22.8 ns

FET Type

P-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

16m Ω @ 3.6A, 4.5V

Vgs(th) (Max) @ Id

1.2V @ 200μA

Input Capacitance (Ciss) (Max) @ Vds

4748pF @ 10V

Gate Charge (Qg) (Max) @ Vgs

113nC @ 10V

Rise Time

29.8ns

Vgs (Max)

±12V

Fall Time (Typ)

100.6 ns

Continuous Drain Current (ID)

9.2A

Gate to Source Voltage (Vgs)

12V

Drain to Source Breakdown Voltage

20V

Pulsed Drain Current-Max (IDM)

90A

Height

580μm

Length

2.55mm

Width

2.35mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
